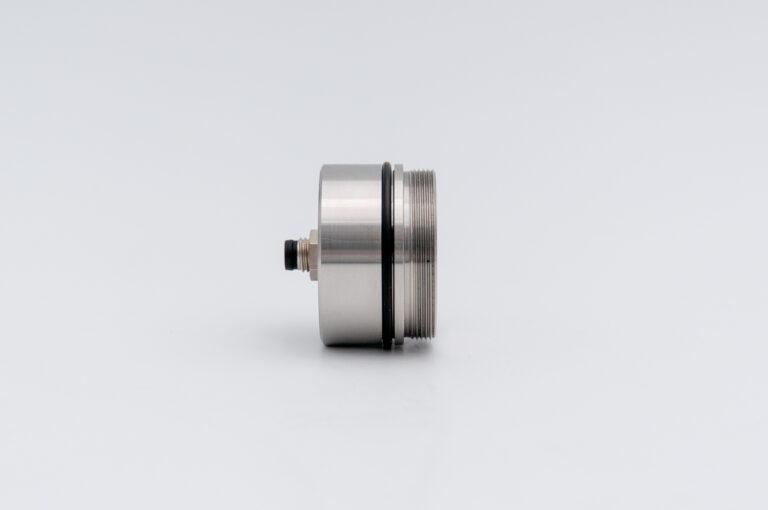

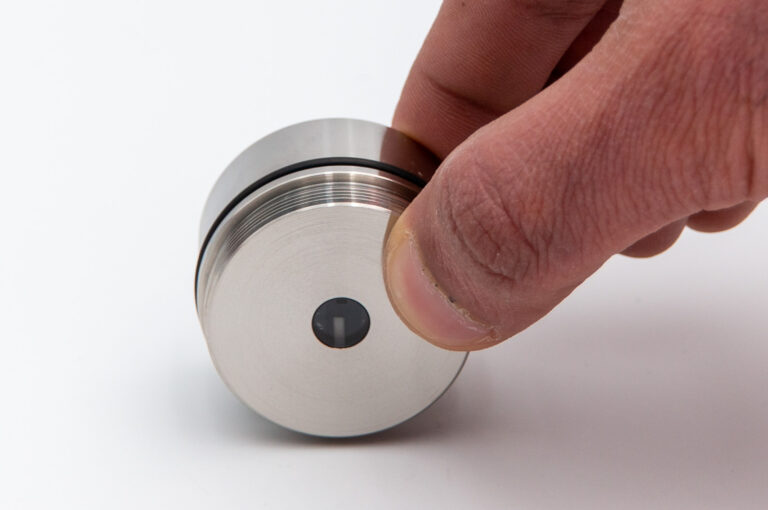

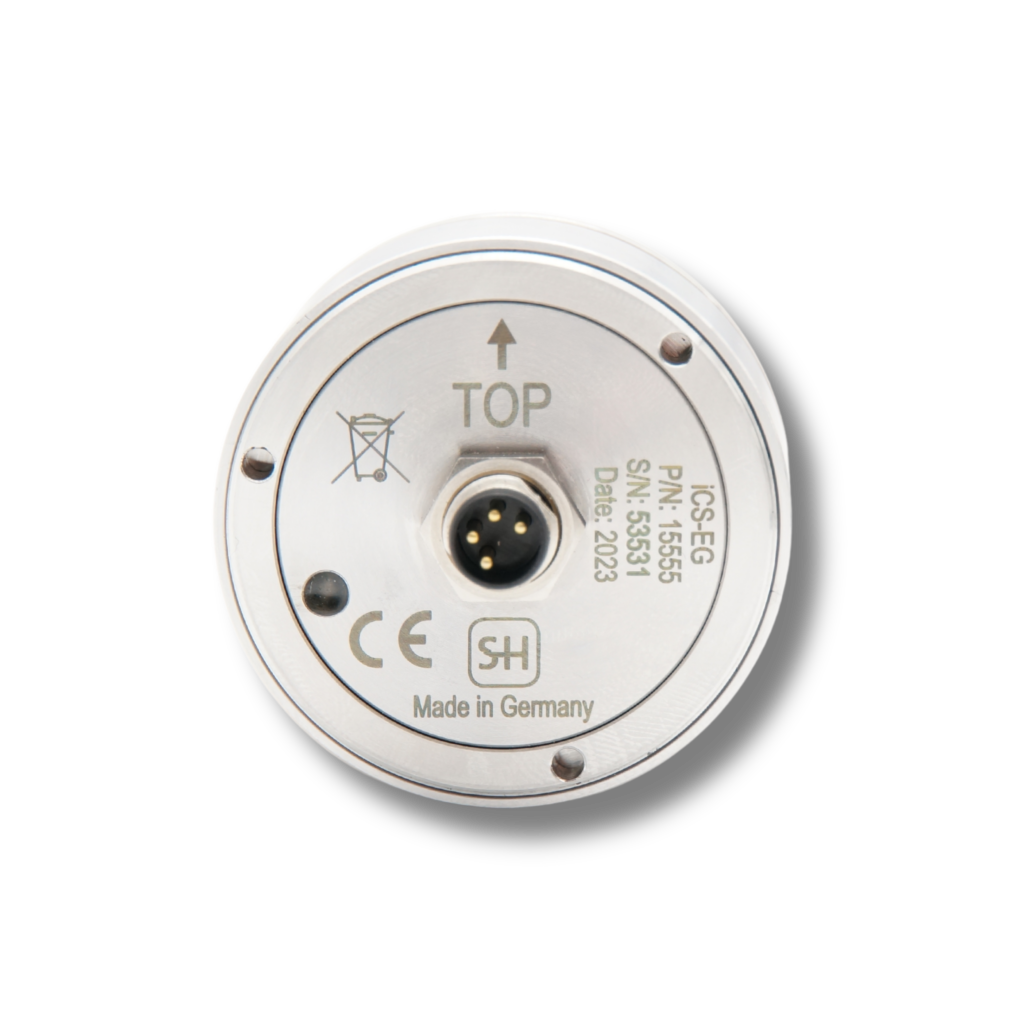

This in-line sensor iCS is a small and easy to install concentration sensor for measuring antifreeze concentration, namely ethylene glycol. But the sensor can be easily adapted to your specific product. It provides consistently reliable measurements and low maintenance efforts.
Especially designed to monitor the concentration of antifreeze ethylene glycol.
Fully compliant with European Safety Standards.
General specifications
| Measuring scales | Ethylen Glycol (EG) Scale % |
| Measuring range | 0 – 55 % |
| Resolution | 0.1 % |
| Accuracy | ± 0.3 % at 10-30 °C and within EG range of 0-5%
2 % at 0-50 °C and within EG range of 0-55 % |
| Operating temperature | – 10… +50 °C |
| Process pressure | max. 4 bar |
| Interface | RS485 Modbus |
| Dimension | 45 mm x Ø 40 mm |
| Weight | approx 250 g |
